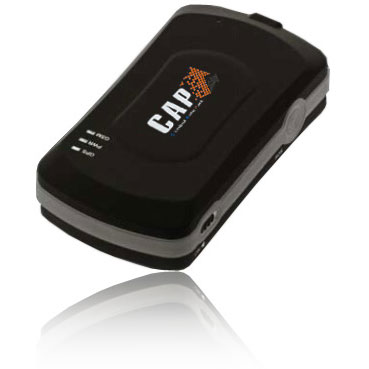

Smart Personal Tracker CAP SPT-10
SPT-10 - a miniature GPS / GSM tracker with advanced hardware capabilities and intelligent tracking algorithms.
SPT-10 model has universal application and can be used for online tracking of people, cars, motorcycles, animals or any other assets. GPS tracker acquires the current position, speed and moving direction, then sends data either to a user specified server or phone number via GPRS and / or SMS.
The undoubted advantages of SPT-10 model are high GPS sensitivity, fast and accurate positioning due to the use of modern MTK chip.
Even in active mode it has very low power consumption. Together with a customizable "hibernate" algorithm while it is not moving (based on built-in 3D-accelerometer) it provides extended lifetime of the rechargable battery. Everything for convenient recharging is included into package: AC adaptor, car charger and mini-USB cable.
The developers of telematics and geo-information applications will appreciate the breadth of customizable options, clear protocol commands and data exchange via GPRS TCP / UDP, SMS and USB channels.

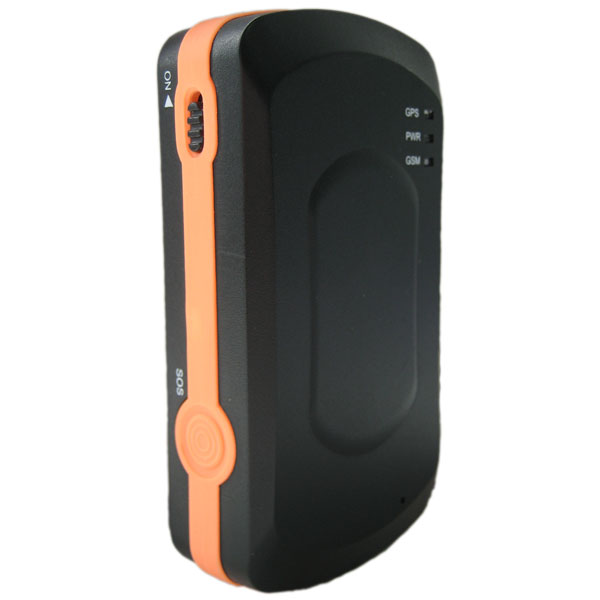

SPT-10 has a built-in Flash-memory with high capacity to store data when it is beyond GSM coverage area, SOS button, three LEDs for status indication. The device is performed in a very compact, practical and high-quality housing with no external elements or antennas, light weight.
Key Product Features
- Tracking (by time interval, distance interval or smart mode)
- Journey logging up to 100,000+ waypoints
- Geo-fencing report
- Mileage report
- Self-defined events report
- Emergency alert
- Speeding alert
- Moving alert
- Low power alert
- Power management
- Password setting
- SIM pin code setting
- SMS/GPRS communication simultaneously
- Device configuration over the air
- Firmware upgrading over the air
Features
- Superior GPS sensivity based on the newest MTK GPS chip
- Various GPS tracking modes: on time and distance interval, heading change and mixed modes
- Built-in Flash memory for keeping 100,000+ track points. It is used for temporary data storage when no GSM signal is available
- Event reporting: geo-fencing control, speed limit exceeding, SOS button pressed, low battery
- Long battery life thanks to low power consumption and customizable sleep mode while not moving (built-in 3D motion sensor)
- Flexible parameter settings for professional users and specific applications: the periodicity of sending data, energy saving modes, geo-events, the use GPRS / SMS for communication, Keep-Alive packets in the protocol, controlling the device via USB / GPRS / SMS, clear and structure protocol for commands and repsonses, data integrity checking
- Obtaining information about the GSM-network: ID of the operator, Cell ID (version EG -7 BS), signal strength, roaming, GPRS-session status
- Compact size, durable and practical housing, universal mini USB connector
Specification
Size and weight
- Sizes:
- 1100 mAh battery capacity: 82x44x18 mm
- 2200 mAh battery capacity (Double Power version): 82x44x24 mm
- Weight (including battery):
- 1100 mAh battery capacity: 70 g
- 2200 mAh battery capacity (Double Power version): 90 g
Housing
- Plastic housing with no protruding elements (black or white colour)
- Rubber band around the perimeter (8 colors to choose from)
- Vibration when SOS button pressed (only for white housing)
- Three LEDs indicating device status (GPS, GSM, Power)
- Built-in microphone
- Switch with protection against accidental turn on/off
- Universal mini USB connector for charging and PC connection
GPS
- High sensivity GPS reception (up to -165 dBm) for urban conditions
- MTK chip, 66 channels
- L1 frequency 1575.42 Mhz
- built-in low noise antenna
- coordinates accurancy 5-25 meters, speed accurancy – 0,1 m/sec
- Update rate 1 Hz
- Cold/warm/hot start 36/33/1 sec
GSM
- Quad band 850/900/1800/1900 Mhz
- Data transmission over SMS, GPRS class 10, TCP/UDP
- Simultanious control over SMS and GPRS
- PIN-code setting
- Unit password for settings change and data access
- Checking of the GSM signal level (with Siemens GSM module - up to 7 BTS) and roaming status
- Disable/enable data transmission in roaming areas
- Firmware update over the air
Event reporting and mileage
- SOS button pressed
- Speed limit exceeding
- Geo-fencing control
- Low battery alert
- Mileage reporting
Memory
- 4 Mbytes flash-memory
- About 100,000 track points
3D motion sensor
- Built-in triaxial accelerometer
- Enabling enery saving mode while not moving
Power
- Embedded Li-ion battery
- Standard version: 1100 mAh capacity
- Double Power version: 2200 mAh capacity
- Battery lifetime:
- Standard version: 9 hours and above in active mode, up to 100 hours in Standby
- Double power version: 18 hours and above in active mode, up to 200 hours in Standby
- Low battery reporting to the server
- Average charging time:
- Standard version: 3 hours
- Double power version: 5 hours
- Charging with AC adaptor, car charger (from cigarette lighter) or PC (from USB-port)
- Full-featured work during charging
- Automatic start when power is restored
Environment
- Temperature -20°С..+60°С
- Humidity 5-95% non-condensing
