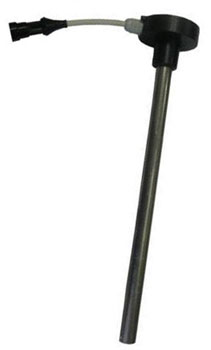

Fuel Level Sensor with analog output (LLS-A)
Fuel level sensor CAP LLS-A analog output can be connected to most systems for monitoring or recording with analog input.
The sensor has no moving parts, and measures the level of electronic means, that will extend the life of the sensor in a few times. You can use the sensor CAP LLS with strongly alkaline and strongly acidic conditions, that expands the sphere of application. The sensors have a standard mount for 5 screws.
Package: fuel level sensor, 4 meters long cable, and screws for installation in the nominal hole, gasket, passport.
 |

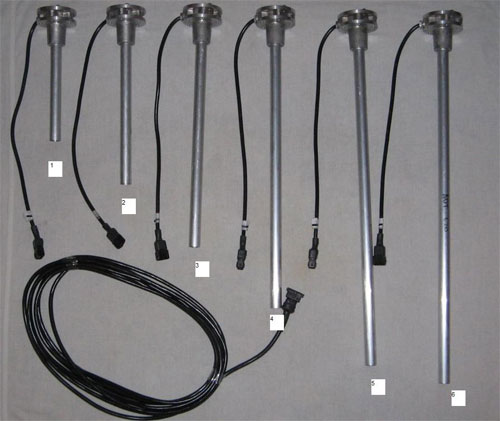

CAP fuel level sensors now have new feature. Our sensors are completed with plastic plug: special fitting which permits to cut it to any necessary height to fit the fuel tank perfectly. In addition, plastic plug protects LLS from water, mud, and dirt that accumulates on the fuel tank bottom, and allows to avoid short circuit. |
Specifications |
|
|---|---|
| Output | |
| - type of signal, analog, V* | |
| volume of fuel 0% | 0.5 |
| volume of fuel 100% | 4.5 (10) |
| Voltage, V | 7...30 |
| Maximum load current, mA | 100 |
| Lower limit value controlled by the level of fuel from the vessel bottom, mm | 1... 20 |
| The value of the upper limit of measurement (L), mm** | 200...4000 |
| Power, W | < 0.2 |
| Dimensions of level sensor, mm | L x 70 x 70 |
| Weight of level sensor, kg | 0.3...3 |
| Continuous operation of the sensor | unlimited |
Accuracy |
|
| Error deviation level, % of sensor length | ± 0.1 |
Operating conditions |
|
| Ambient temperature, °C | -40...+55 |
| Relative humidity of ambient air (at temperatures not exceeding +40 °C), % | up to 95 |
* Upper and lower value of the signal depend on the length of the cut-off sensor.
** Cutting is allowed up to 30% of the original length.
