TT-1
GPRS/GPS AVL Units

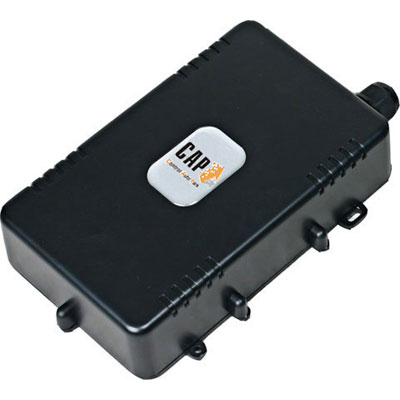

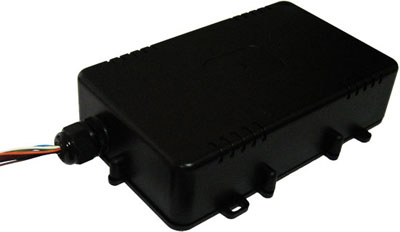

CAP TT-1 is a high performance and reliable GPS/GSM/GPRS Trailer Tracking device which is developed and designed for the asset and fleet management.
TT-1 is VT10/VT200 advanced model which inherits all the superior characteristics of VT-10/VT-200; also the diversified operation scenario provides the best solution in your location based service.
With the superior sensitivity GPS module on board, long operation time by the built-in high capacity rechargeable lithium battery, the smart power management function and the outdoor operating environment has been considered, TT-1 is the best choice to your Trailer Tracking application.
Product Feature
- Tracking:
- time interval mode;
- distance interval mode;
- smart mode (combine time, distance and ignition conditions);
- idle tracking mode;
- low battery level mode.
- Journey logging up to 100,000+ waypoints.
- Geo-fencing control.
- Roaming control.
- Mileage report.
- Battery level report.
- Idling report.
- Emergency alarm.
- Speeding alarm.
- Towing alarm.
- Power low/lost alarm.
- Battery level indicator in each position report.
- Superior Power Management.
- Back-up battery life time exceeds 60 days in VT200/90 days in VT10, the operation is based on 4 position reports per day without extra charge.
- GSM/GPRS communication simultaneously.
- Customization firmware available.
- Configuration over the air.
- Firmware updating over the air.

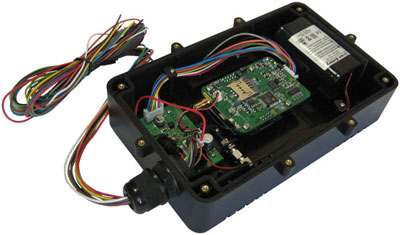

Hardware Specification
- Dimensions: 190 (L) x 115 (W) x 50 (H) mm.
- GPS 66 channels, -165dBm superior sensitivity.
- GSM 850/900/1800/1900 MHz, SMS, GPRS UDP/TCP.
- Power source: DC 8-35V.
- Back-up battery: 10.4Ah, 3.7V rechargeable Lithium battery.
- Power consumption:
- < 60 mA @12V DC (GPS on, GSM on, GPRS connected);
- <20 mA @12V DC in power saving mode (GPS off, GSM in standby mode);
- < 1 mA @ 3.7V DC (GPS off, GSM off, 3D G sensor and real time clock are on).
- Communication port: 1 mini-USB, for data exchanging (1 RS232 serial port in VT200).
- 4 digital inputs (includes 2 analog in VT200), 4 digital outputs.
- Memory: Built-in 4MB flash memory.
- Built-in tri-axial acceleration sensor.
- IP 65 waterproof enclosure.
- Operation Temperature: -20°C to +55°C.
