VT-10
GPRS/GPS AVL Units

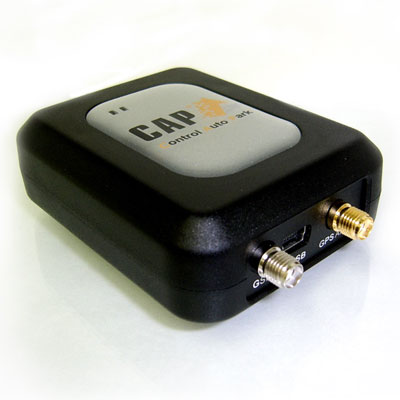

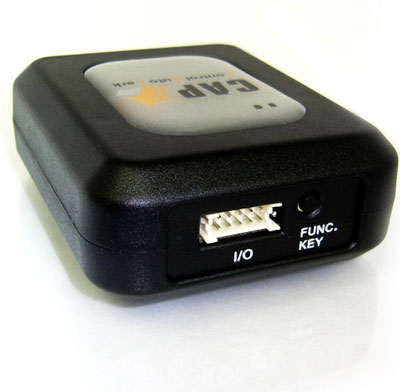

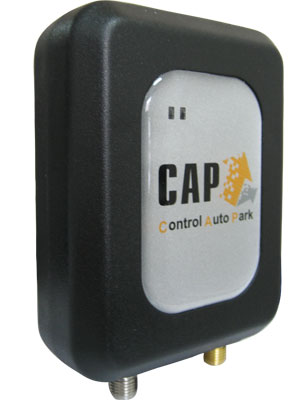

VT-10 (Car GPS / GPRS terminal)
Description
VT-10 is a highly reliable intelligent GPS / GSM terminal for satellite control cars and other mobile equipment. The terminal will satisfy most practical problems of monitoring, has flexible programming options to adapt to specific tasks.
The device has a high-performance sensitivity to satellite signals, GPS, caused by the use of a modern chip GPS SiRF Star III and active foreign anntenny, the optimal location where you can choose from a flexible connecting cable of sufficient length.
With VT-10 can control not only the precise location and speed of the car in on-line, but also remotely determine the parameters of automotive systems, such as: the status of the ignition, doors, incorporating hoists, etc.
Four flexible programmable function "to ground" allow you to remotely control external devices (auto lock and engine preheater, etc) or to include these devices in any logical combination of input states. For example, when you open the doors of the bus or taxi, include a video camera to record the cabin.
The terminal applies a modern GSM-module with support for signals quad-GSM 850/900/1800/1900 MHz, providing work in any network mobile standard, GSM. It is possible to determine whether the product should work in roaming. During their stay outside the GSM-network terminal continues to accumulate data on the location and status within the domestic non-volatile memory, to transmit them in one package when you return to the area of GSM-coverage.
GPS-terminal VT-10 is connected to the onboard power supply over a wide voltage range of 8-35 V, i.e. can be installed on both the passenger and the cargo transport, special equipment. Built-in battery backup provides autonomous operation of the unit when disconnecting the car battery to the feedback about this event - this feature is widely used in security and anti-theft purposes.
Built-in motion detector (G-sensor acceleration) is used in intelligent algorithms, energy conservation, and can be used to determine the parking areas of the vehicle.
Benefits
- • High sensitivity and rapid capture of GPS-signal, application of modern GPS-chip MTK or older model SiRF Star III
- • Different modes of GPS-tracking: the time interval, distance, changes of direction, a hybrid intelligent modes
- • Supports GSM 850/900/1800/1900 MHz, GPRS UDP and TCP, SMS
- • Built-in nonvolatile memory on 100,000 + points of the route (equivalent to approximately 10 000 km). Used, for example, to accumulate data when finding out of GSM-coverage
- • Reports of events: entry / ambulance services from the designated geo-zones, speeding, pressed a panic button, low battery
- • Control of external devices with two positive and two negative inputs
- • Four programmable and remotely controlled output
- • Long-term operation of the backup battery is provided, including automatic conversion to energy saving mode (built-in 3D-motion sensor)
- • Maximum flexibility parameter settings for professional users and specific applications: the periodicity of sending data, save energy, reactions to the geo-events, the use of communication channels GPRS / SMS, sharing packages Keep-Alive, control the device via USB / GPRS / SMS, a logical protocol commands and responses, mechanisms for monitoring the integrity of data
- • LBS data! Obtaining information about the GSM-network: ID of the operator, Cell ID (version EG - 7 BS), signal strength, roaming, the state of GPRS-session
- • Compact size, durable and practical housing, universal mini USB connector
- • The status indicators reception of GPS and GPRS connection to verify connectivity device directly during the installation
- • Ability to upgrade firmware via USB or remotely via GPRS-channel
- • Waterproof IP67 CASE
Hardware Specification and Features
Size and weight
- • Dimensions: 59x76x27 mm
- • Weight: 109 g
GPS
- • A highly sensitive receiver (up to -169 dBm) for work in urban environments antenna
- • Chip MTK, 67 channels
- • Frequency L1 1575.42 MHz
- • Integrated low-noise antenna
- • Positioning accuracy of 1 meter, speed - 0,1 m / s
- • Every second data update
- • Cold / Warm / Hot start 42/38/1 sec
GSM
- • 850/900/1800/1900 MHz
- • Data Transfer SMS, GPRS class 10, TCP / UDP
Memory
- • Flash-Memory 4 MB
- • Storage of up to 100,000 waypoints
G-motion sensor
- • Built-in 3D G-sensor
- • Use for energy savings in the quiescent
Inputs and outputs
- • 4 digital inputs
- 2 positive
- 2 negative
- • 4 controls the release of "short to ground"
- Programmable on / off state of the logical inputs
- Remote control via GSM-channel GPRS / SMS
- Programmable duration and number of pulses
- Rated current of 200 mA (max - 300 mA)
- • Serial port mini-USB
Power
- • Supply voltage range 8-35V
- • Embedded Battery Li-ion 950 mAh
- • Current consumption in different modes:
- 55 mA / 12V (GPS Inc., GSM Inc., GPRS connected)
- <20 mA / 12V (GPS off, GSM standby)
- <8 mA / 12V (GPS off, GSM off, inputs and motion sensor controlled)
Environment
- Operating temperature:
- Online monitoring: -20 ° C.. +80 ° C
- Data storage: -40 ° C.. +80 ° C
- Humidity 5-95%
- Plastic dust / moisture protection box IP67 (optional)
Additional accessories equipment
GPS / GSM Terminal VT-10 has four digital inputs (two positive and two negative), and 4 programmable and remotely controlled output, which can be connected to various sensors and external devices. Below are examples of the most commonly used sensors and devices.
.jpg) |
Alarm button driver Car button for an alarm to the driver. Fits in any place in the cockpit.The variants with locking or non-latching position. |
 |
Relay circuit block engine / control external devices Classical pyatikontaktnoe Relay (12V or 24V) to control the lock (the lock run) motor and control external devices. |
 |
Proximity sensor (presence), inductive Inductive sensor approach that enables to control the mechanisms.The sensor is triggered when finding metal in the area of sensitivity. |
 |
Proximity sensor (presence) optical Optical proximity switch for control of the mechanisms of passage of passengers, etc. The sensor is triggered when finding objects in the zone of sensitivity. |
 |
Proximity sensor (presence) capacitive Capacitive proximity switch can be used to control the operation of mechanisms. Triggered while in the zone of sensitive facilities, including nonmetallic. |
 |
Limit Switch open the door The classic sensor for determining the opening car doors. When you open the door spring is triggered, and is the closure of the signal contact to ground. |
 |
Magneto-contact sensor opening doors Sensor to determine whether opening the door, consists of a main part and a magnet. Sensor triggered an increase in the gap between the parts of a threshold level. |
 |
Camcorder for the interior (cockpit) Video camera produces high-quality audio / video recording of the situation in the cab (cabin bus, cargo) on a programmable signal from the GPS / GSM terminal. |
CAP VT-10 (Vehicle Tracking Model 10)
Manufacture and models: cap wp10, cap vt10, vt10, vt-10, vehicle tracking unit avl
Vehicle and Driver Management
| Trip Data Recording | The following data is recorded: date and time, distance traveled, journey duration, vehicle speed, engine speed (RPM), journey departure and arrival time, driver name, driver ID, vehicle ID. |
| Driving Violations | The following standard violations are recorded: over speeding, over revving, green band driving, harsh braking, harsh acceleration, excessive idling and overtime driving. |
| Customised Events | Define customized events, such as driver door opening, no-go zone entered, hazard lights activated and refrigerator temperature exceeded. |
| Second-to-Second (Tacho) Data | The status of inputs such as speed and RPM is recorded every second. This provides valuable in-depth information for accident analysis. |
| Servicing and Licensing | Set reminders for your vehicle’s next service or vehicle/driver license expiry. |
