VT-200
GPRS/GPS AVL Units

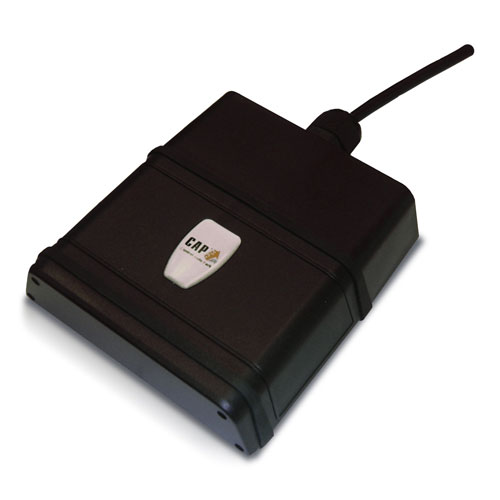

VT-200 (Vehicle Tracking Unit Model 200)
WP AVL New Fleet Management AVL unit GPS/GPRS
Main Functions
- Determining current location
- Automatic tracking (by time, by distance, to change the direction of motion)
- Record route to 100,000 positions
- Programmable automatic messages
- Control of geographical zones
- Odometer
- Control of voltage
- Prevention of backup power
- Power management
- Warning nesanktsioniruemoy tow
- Grief Reporting expressway regime
- Communication with the device in voice mode (listen)
- Multiconductor input output
- Independent power
- SIM PIN code setting
- Remote configuration
- Waterproof (optional)
- The logic of determining where to change the angle, time or distance.
- Key identifying the driver.
- RFID tags
Main Technical Characteristics
- GPS: Cyber new Star III modification 65 channels A-GPS!
- QUAD BAND AVL GSM: Siemens MC55/56 (supported frequencies 850/900/1800/1900 MHz)
- Voice, CS Data, SMS, GPRS UDP / TCP

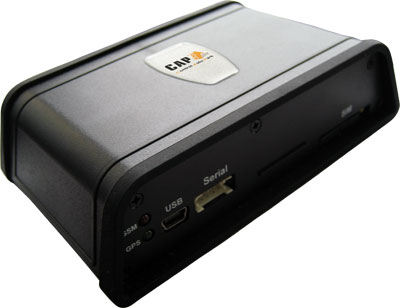

- Serial ports: 1 mini-USB, 1 RS232 (Baud rate: 115,200 bps)
- Power supply: 8-35V DC
- Power consumption: <55mA @ 12V DC in normal operation
- Built aksellerometr (3D G-sensor)
- Built-in flash memory to 4MB (200 000 messages)
- Battery: Li-ion 950mA / h or 2000mAh
- Operating temperature range: -40 ° to +80 ° C

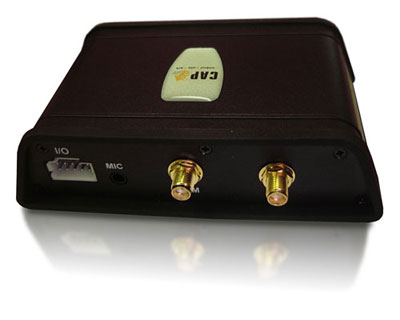

- I / O Ports:
- 4 discrete input ports, 2 are activated by coupling with the ground and 2 are activated by positive voltage (including 2 analog inputs)
- 2 Frequency inputs (CAP Firmware 1.5 up to 1300Hz) and 2 Analog Inputs 0-30v
- 4 discrete outputs, 4 negative triggering
- ports RS232/RS485, supporting fuel level sensors (CAP LLS-A/F/D)
Ready-made configuration for industries:
- Agriculture - counting hours, fuel level, area of processing, kchestva works.
- Construction - counting hours, fuel level, loading, unloading, following a route.
- International transport - the level and fuel consumption, speed mode, a large black box the size of 200 000 messages.
- Diesel GenSet monitoring M2M application with CAP LLS Fuel Level Sensor.
CAP WP AVL Future-designed GPS/GPRS Tracking System - supports Fuel and Temeprature control and extra Fleet management opportunities for 100% tracking records savings 200 000 location records.
Vehicle and Driver Management
| Trip Data Recording | The following data is recorded: date and time, distance traveled, journey duration, vehicle speed, engine speed (RPM), journey departure and arrival time, driver name, driver ID, vehicle ID. |
| Driving Violations | The following standard violations are recorded: over speeding, over revving, green band driving, harsh braking, harsh acceleration, excessive idling and overtime driving. |
| Customised Events | Define customized events, such as driver door opening, no-go zone entered, hazard lights activated and refrigerator temperature exceeded. |
| Second-to-Second (Tacho) Data | The status of inputs such as speed and RPM is recorded every second. This provides valuable in-depth information for accident analysis. |
| Servicing and Licensing | Set reminders for your vehicle’s next service or vehicle/driver license expiry. |
