GNS-3FRJ11
GLONASS/GPS Modules

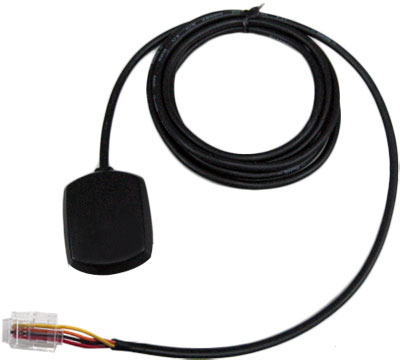

GNS-3FRJ11 is a highly integrated RJ11 connector GLONASS/GPS receiver with a ceramic GLONASS/GPS patch antenna. The antenna is connected to the receiver via an LNA. The receiver is with 80 channels acquisition engine and 20 channels tracking engine, which be capable of receiving signals from up to 100 GLONASS/GPS satellites and transferring them into the precise position and timing information that can be read over RJ11 connector with UART signal interface. Small size and high-end GLONASS/GPS functionality are at low power consumption, supplying the voltage of 3V~5.0V has been supported.
The RJ11 connector GLONASS/GPS receiver is available as an off-the-shelf component, 100% tested. The RJ11 connector GLONASS/GPS receiver can be offered for OEM applications with the versatile adaptation in form and connection. Additionally, the RJ11 connector GLONASS/GPS receiver can be matched to the ultimate optimized systems.
General Features
- • 100 channels to acquire and track satellites simultaneously.
- • Tracking sensitivity reaches -161 dBm.
- • 0.5 PPM TCXO for quick cold start, Industry-leading TTFF speed.
- • Integral LNA with low power control.
- • Cold start <35 sec under clear Sky.
- • Hot start ≈ 1 sec under clear Sky.
- • Accuracy 5m CEP.
- • DGPS and WAAS Capable.
- • Operable at 3.3v-5v LVTTL/RS232.
- • UART signal output via 4-pin RJ11 connector.
- • 45mm x 34 mm x 15 mm.
- • RoHS compliance.
